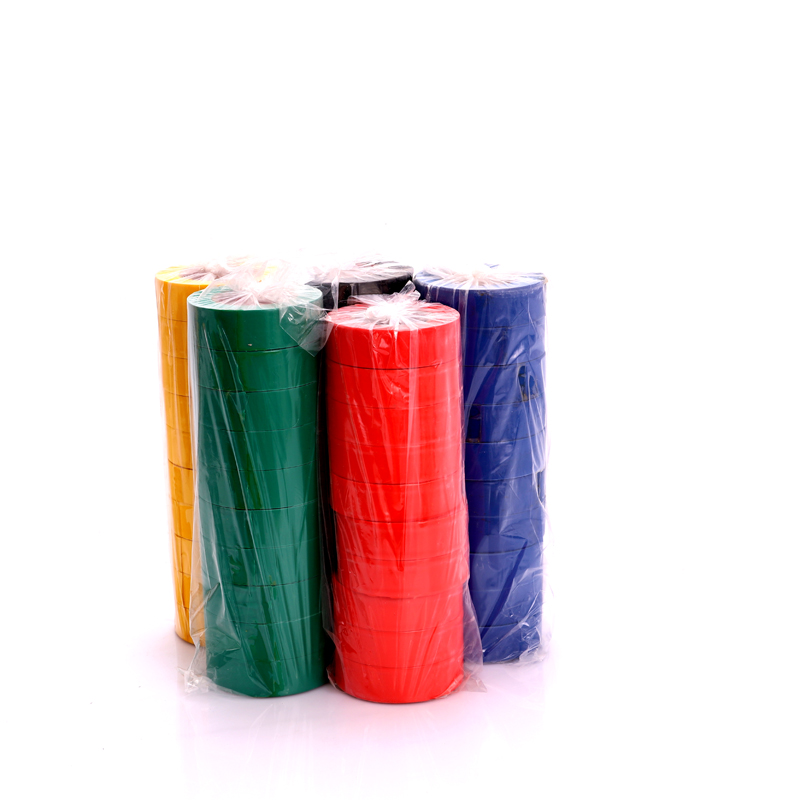

PVC Non-Adhesive Insulation Tape
PVC Non-Adhesive Insulation Tape
PVC Non-Adhesive Insulation Tape
PVC Non-Adhesive Insulation Tape
PVC Non-Adhesive Insulation Tape

PVC Non-Adhesive Insulation Tape

PVC Non-Adhesive Insulation Tape is made from high-quality polyvinyl chloride (PVC) film with excellent flexibility, weather resistance, and electrical insulation. Unlike ordinary adhesive tapes, this tape contains no glue — it relies on tight wrapping and overlap tension to provide firm, clean insulation without leaving any residue.
It is mainly used for electrical wire bundling, insulation protection, color marking, and cable harness wrapping where a clean, non-sticky surface is required. The

PVC Non-Adhesive Insulation Tape

Select the number of specifications

Please check the product information you want!

Product Detail

Product Details

Made of high-grade soft PVC material

No adhesive, clean and residue-free surface

Excellent electrical insulation and flexibility

Heat-resistant, weatherproof, and flame-retardant

Suitable for cable binding, harness wrapping, and insulation protection

Available in multiple colors for easy identification


Applications

Electrical wire bundling and insulation wrapping

Color marking for wire and cable identification

Harness wrapping in automotive, electronic, and appliance wiring

Temporary insulation protection during installation or maintenance

Areas requiring a clean, non-sticky surface


Technical Specifications

Item

Description

Base Material

PVC (Polyvinyl Chloride)

Adhesion Type

Non-Adhesive / Non-Sticky

Color

Black, Red, Yellow, Blue, Green, White (customizable)

Thickness

0.13mm / 0.15mm / 0.18mm (customizable)

Width

19mm / 25mm / 38mm / 50mm (customizable)

Length

10m / 20m / 30m / 33m (customizable)

Tensile Strength

≥ 1.5 MPa

Elongation at Break

≥ 150%

Dielectric Strength

≥ 600V/mm

Temperature Resistance

−10°C to +80°C

Flame Retardancy

UL 510 / RoHS Compliant

Packaging

10 rolls/shrink pack, 100 rolls/carton or customized




No comment

Next : Weather-Resistant PVC Electrical Insulation Tape
Product Detail

Product Details

Made of high-grade soft PVC material

No adhesive, clean and residue-free surface

Excellent electrical insulation and flexibility

Heat-resistant, weatherproof, and flame-retardant

Suitable for cable binding, harness wrapping, and insulation protection

Available in multiple colors for easy identification


Applications

Electrical wire bundling and insulation wrapping

Color marking for wire and cable identification

Harness wrapping in automotive, electronic, and appliance wiring

Temporary insulation protection during installation or maintenance

Areas requiring a clean, non-sticky surface


Technical Specifications

Item

Description

Base Material

PVC (Polyvinyl Chloride)

Adhesion Type

Non-Adhesive / Non-Sticky

Color

Black, Red, Yellow, Blue, Green, White (customizable)

Thickness

0.13mm / 0.15mm / 0.18mm (customizable)

Width

19mm / 25mm / 38mm / 50mm (customizable)

Length

10m / 20m / 30m / 33m (customizable)

Tensile Strength

≥ 1.5 MPa

Elongation at Break

≥ 150%

Dielectric Strength

≥ 600V/mm

Temperature Resistance

−10°C to +80°C

Flame Retardancy

UL 510 / RoHS Compliant

Packaging

10 rolls/shrink pack, 100 rolls/carton or customized




PVC Non-Adhesive Insulation Tape
PVC Non-Adhesive Insulation Tape is made from high-quality polyvinyl chloride (PVC) film with excellent flexibility, weather resistance, and electrical insulation. Unlike ordinary adhesive tapes, this tape contains no glue — it relies on tight wrapping and overlap tension to provide firm, clean insulation without leaving any residue.
It is mainly used for electrical wire bundling, insulation protection, color marking, and cable harness wrapping where a clean, non-sticky surface is required. The
